Khoom Taw qhia
EPHIL

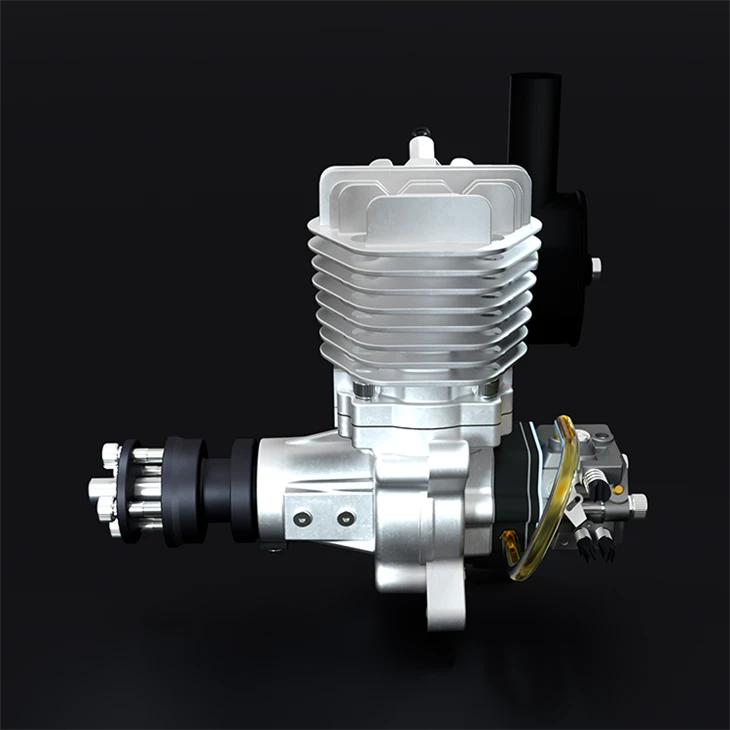

x-38CC-S
PROFESSIONAL GASOLINE ENGINE
RAU AIRPLANE
Precision Manufacturing
Kev khiav ruaj khov
Lub Neej Ntev Ntev
Kev ua tau zoo
Yooj Yim Rau Kev Kho
Raws li roj av cav speifically tsim rau taag-tis tej thaj chaw deb tswj aircraft,
Lub cav 38cc boasts tus qauv tsim, kev ua tau zoo heev, thiab kev nrawm nrawm nrawm.
Nws yog qhov kev xaiv zoo tshaj plaws ntawm cov hobbyists ntawm me me thiab nruab nrab-qhov loj me qauv dav hlau.
COMPONENTS
| X-38cc-S | X-38cc-SPRO | X-38cc-R | X-30cc-RPRO | |
| Cav | √ | √ | √ | √ |
| Walbro Carburetor | √ | √ | √ | √ |
| Muffler Teeb (Sab Hom) | √ | √ | ||
| Muffler Set (Tom ntej) | √ | √ | ||
| CM6 liridium Spark Plug | √ | √ | √ | √ |
| Electronic lgnition | √ | √ | √ | √ |
| Cav Mount Set | √ | √ | √ | √ |
| Gear-Drive Propeller Hub | √ | √ | ||
| Lub cav pib | √ | √ | ||
| Pib ESC | √ | √ |
X-38cc-S Standard Cheebtsam
X-38cc-S cav
nrog Walbro Carb
Cav Muffler Set
CM -6
lridium spark plug
Electronic CDI
lgnition Mod
Aluminium Standoffs
Cav ua haujlwm
Phau ntawv & Warranty Card
PARAMETERS
Qauv: X-38cc-S
Kev xa tawm: 38cc (2.33 cu hauv)
Kev ua haujlwm siab: 4.2HP
Kev nrawm nrawm: 1800-7300 RPM (Test Propeller-20*8)
Loj: 39mm (1.54 nti)
Stroke: 32.5mm (1.28 nyob rau hauv)
Static Thrust: 9.9 kg @ 100 m ALT (21.8 lb @ 328 ft ALT)
Static Thrust: 8.2 kg @ 1800 m ALT (18.1 lb @ 5900 ft ALT)
Compression ratio: 9: 1
Lubrication piv: 30: 1 ( Roj: 2-Stroke Tsav Roj)
Ignition Voltage: 6-14 V
Spark Plug Hom: CM6 Iridium Spark Plug
Pom zoo Propeller: 19x8; 19 x 10; 20 x 8; 20 x 10
Lub cev hnyav: 1010g
Qhov hnyav ntawm Muffler Teeb: 73g
Qhov hnyav ntawm Aluminium Standoffs Teeb: 100g
Qhov hnyav ntawm Spark Plug: 13.5g
Qhov hnyav ntawm CDI (Ignition): 104g
Qhov hnyav tag nrho: 1300.5g (2.87 lb)
