XG-76cc-T Glow Gasoline Cav
video
XG-76cc-T Glow Gasoline Cav

XG-76cc-T Glow Gasoline Cav

EPHIL
XG-76CC-T
PROFESSIONAL GLOW-HOM
GASOLINE ENGINE
RAU AIRPLANE
Xa kev nug
Khoom Taw qhia

EPHIL
XG-76CC-T

PROFESSIONAL GLOW-HOM
GASOLINE ENGINE
RAU AIRPLANE

main
Precision Manufacturing

Precision Manufacturing

Stable Running

RPM ruaj khov

Long Life Span

Linear Acceleration

Powerful Performance

Kev ua tau zoo

Easy For Maintenance

Yooj Yim Rau Kev Kho

Easy Remote Start

Yooj yim Chaw Taws Teeb Pib

Lub XG-76cc-T rov qab ntxaib lub tog raj kheej lub cav ua haujlwm zoo dua tag nrho lub cav nrawm.
Cov kev tawm tsam crankshaft thiab piston tshem tawm feem ntau ntawm cov tsis xav tau kev co thaum ua haujlwm.
Lub teeb yuag tsim tso cai rau lub cav kom muaj qhov sib zog-rau-hnyav piv rau lwm lub cav ntawm tib qhov kev hloov pauv, ua rau nws tsim nyog rau me me RC dav hlau thiab UAVs.


product-1-1
product-1-1

ephil et-power system

Ignition unit nrog tshiab ntse algorithm

Hloov pauv lub zog tso zis tswj tshuab

Tshiab tiam ignition rau lub glow plugs

Small Size Light Weight

Me me
Lub teeb nyhav

Low EMI High Stability

Tsawg EMI
Kev ruaj ntseg siab

Low Voltage Low Power Consumption

Tsawg voltage
Kev siv hluav taws xob tsawg

No Ignition Timing No Ignition Angle

Tsis muaj Ignition Timing
Tsis muaj Ignition Angle

product-1-1

COMPONENTS

  XG-76cc-T XG-76cc-TPRO
Cav √ √
Walbro Carburator √ √
Muffler Teeb (L & R) √ √
Glow Plug x2 √ √
AET Power System √ √
Gear-Drive Propeller Hub   √
Lub cav pib   √
Pib ESC   √

XG-76cc-T Standard Cheebtsam

product-1-1

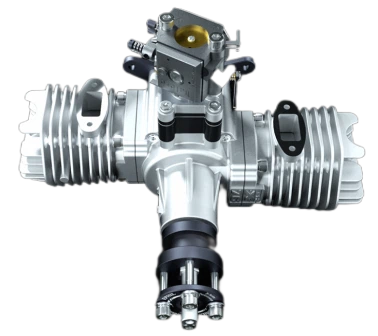

XG-76cc-T ENGINE
Nrog Walbro Carb

Cav Muffler Teeb (L&R)

2
product-1-1

E8
Glow Plug x2

AET Fais Fab System (Lgnition Unit)

product-1-1
product-1-1

Aluminium Standoff Set

Cav ua haujlwm
Phau ntawv & Warranty Card

product-1-1

PARAMETERS

Qauv: XG-76cc-T

Kev xaav: 76cc (4.64 cu hauv)

Kev ua tau zoo: 9.0 HP

Kev nrawm nrawm: 1800-7300 RPM (Test Propeller-24*8)

Loj: 39mm (1.54 nti)

Stroke: 32.5mm (1.28 nyob rau hauv)

Static Thrust: 18.5 kg @ 100 m ALT (40.8 lb @ 328 ft ALT)

Static Thrust: 16.8 kg @ 1800 m ALT (37.1 lb @ 5900 ft ALT)

Compression ratio: 9: 1

Lubrication piv: 30: 1 ( Roj: 2-Stroke Tsav Roj)

Ignition Voltage: 6-8.4V

Glow Plug Hom: E8 (los yog OS G5) Glow Plug & AET Fais Fab System

Pom zoo Propeller: 22x10; 23 x8;. 23 x 10; 24 x8

Qhov hnyav ntawm lub cav loj: 1688g

Qhov hnyav ntawm Muffler Teeb: 174g (L&R Mufflers; Screws)

Qhov hnyav ntawm Aluminium Standoffs Teeb: 72g

Qhov hnyav ntawm Glow Plug: 3.6 * 2 (E8 * 2)

Qhov hnyav ntawm AET (Ignition): 35g

Qhov hnyav tag nrho: 1976g (4.36 lb)
