EPHIL
X-38CC-R
PROFESSIONAL GASOLINE ENGINE
RAU AIRPLANE
Precision Manufacturing
Kev khiav ruaj khov
Lub Neej Ntev Ntev
Kev ua tau zoo
Yooj Yim Rau Kev Kho
Raws li lub cav roj av tshwj xeeb tsim los rau cov chaw taws teeb tswj lub dav hlau 38cc boasts tus qauv tsim,
kev ua tau zoo heev, thiab ib tug du acceleration nkhaus.
lt yog ib qho kev xaiv nyiam ntawm cov hobbyists ntawm cov qauv dav hlau me me thiab nruab nrab.
COMPONENTS
| X-38cc-S | X-38cc-SPRO | X-38cc-R | X-30cc-RPRO | |
| Cav | √ | √ | √ | √ |
| Walbro Carburetor | √ | √ | √ | √ |
| Muffler Teeb (Sab Hom) | √ | √ | ||
| Muffler Set (Tom ntej) | √ | √ | ||
| CM6 liridium Spark Plug | √ | √ | √ | √ |
| Electronic lgnition | √ | √ | √ | √ |
| Cav Mount Set | √ | √ | √ | √ |
| Gear-Drive Propeller Hub | √ | √ | ||
| Lub cav pib | √ | √ | ||
| Pib ESC | √ | √ |
X-38cc-R Standard Cheebtsam
X-38cc-R ENGINE
nrog Walbro Carb
Cav Muffler Set
CM -6
lridium spark plug
Electronic CDI
lgnition Mod

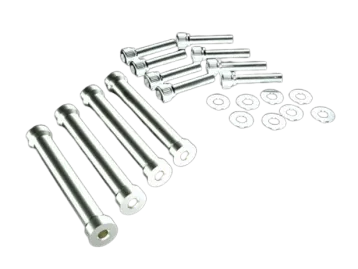

Aluminium Standoffs
Cav ua haujlwm
Phau ntawv & Warranty Card
PARAMETERS
Qauv: X-38cc-R
Kev xa tawm: 38cc (2.33 cu hauv)
Kev ua haujlwm siab: 4.2HP
Kev nrawm nrawm: 1800-7300 RPM (Test Propeller-20*8)
Loj: 39mm (1.54 nti)
Stroke: 32.5mm (1.28 nyob rau hauv)
Static Thrust: 9.9 kg @ 100 m ALT (21.8 lb @ 328 ft ALT)
Static Thrust: 8.2 kg @ 1800 m ALT (18.1 lb @ 5900 ft ALT)
Compression ratio: 9: 1
Lubrication piv: 30: 1 ( Roj: 2-Stroke Tsav Roj)
Ignition Voltage: 6-14 V
Spark Plug Hom: CM6 Iridium Spark Plug
Pom zoo Propeller: 19x8; 19 x 10; 20 x 8; 20 x 10
Qhov hnyav ntawm Main Cav: 1040g
Qhov hnyav ntawm Muffler Teeb: 73g
Qhov hnyav ntawm Aluminium Standoffs Teeb: 100g
Qhov hnyav ntawm Spark Plug: 13.5g
Qhov hnyav ntawm CDI (Ignition): 104g
Qhov hnyav tag nrho: 1330.5g (2.93 lb)
