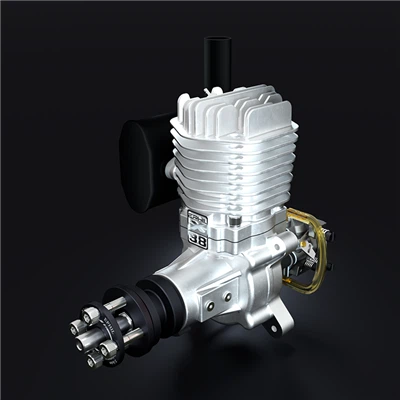

XG-38cc-R Pro Glow Gasoline Cav
XG-38CC-R PRO
PROFESSIONAL GLOW-HOM
GASOLINE ENGINE
RAU AIRPLANE
Xa kev nug
Khoom Taw qhia
EPHIL
XG-38CC-Rpro
PROFESSIONAL GLOW-HOM
GASOLINE ENGINE
RAU AIRPLANE
Precision Manufacturing
RPM ruaj khov
Linear Acceleration
Kev ua tau zoo
Yooj Yim Rau Kev Kho
Yooj yim Chaw Taws Teeb Pib
Raws li lub cav roj av tshwj xeeb tsim los rau lub dav hlau ruaj khov-kwv yees lub 38cc cav boasts tus qauv tsim, kev ua tau zoo heev thiab kev nrawm nrawm.
Nws yog qhov kev xaiv zoo tshaj plaws ntawm cov hobbyists ntawm me me thiab nruab nrab-qhov loj me qauv dav hlau.
PRO Version Cav Los Nrog
EPHIL Cav Hluav Taws Xob Pib
pib lub cav los ntawm xwb
- ib nias
- ib ob
- ib zaug
- Patented Tsim
- Tus neeg siv-phooj ywg
- Ua tau zoo heev
- Ntev Lifespan
- Teb ceev
- Lub teeb nyhav
- Muaj kev nyab xeeb dua
- Lub cev muaj zog ESC: 40A (Nrog rau tam sim no)
- Kev tawm tswv yim Voltage: 11V- 16.8V (3S-4SLiPo)
- Lub cev muaj zog: M2830A / 900KV
- Net Nyhav (Starter): 120g
- Net Nyhav (ESC): 36g
CEEB TOOM: Lub cav pib no tsuas haum rau EPHIL cav.
ephil et-power system
Ignition unit nrog tshiab ntse algorithm
Hloov pauv lub zog tso zis tswj tshuab
Tshiab tiam ignition rau lub glow plugs
Me me
Lub teeb nyhav
Tsawg EMI
Kev ruaj ntseg siab
Tsawg voltage
Kev siv hluav taws xob tsawg
Tsis muaj Ignition Timing
Tsis muaj Ignition Angle
COMPONENTS
| XG-38cc-S | XG-38cc-SPRO | XG-38cc-R | XG-30cc-RPRO | |
| Cav | √ | √ | √ | √ |
| Walbro Carburator | √ | √ | √ | √ |
| Muffler Teeb (Sab Hom) | √ | √ | ||
| Muffler Set (Tom ntej) | √ | √ | ||
| Glow Plug | √ | √ | √ | √ |
| AET Power System | √ | √ | √ | √ |
| Cav Mount Set | √ | √ | √ | √ |
| Gear-Drive Propeller Hub | √ | √ | ||
| Lub cav pib | √ | √ | ||
| Pib ESC | √ | √ |
XG-38cc-R PRO Standard Cheebtsam
XG-38cc-R Pro ENGINE
Nrog Walbro Carb
Cav Muffler Set
E8
Glow Plug
Pib ESC
AET Power System
(Lgnition Unit)
Aluminium Standoffs
Engine Operation Manual & Warranty Card
PARAMETERS
Qauv: XG-38cc-R Pro
Kev xa tawm: 38cc (2.33 cu hauv)
Kev ua haujlwm siab: 4.2HP
Kev nrawm nrawm: 1800-7300 RPM (Test Propeller-20*8)
Loj: 39mm (1.54 nti)
Stroke: 32.5mm (1.28 nyob rau hauv)
Static Thrust: 9.9 kg @ 100 m ALT (21.8 lb @ 328 ft ALT)
Static Thrust: 8.2 kg @ 1800 m ALT (18.1 lb @ 5900 ft ALT)
Compression ratio: 9: 1
Lubrication piv: 30: 1 ( Roj: 2-Stroke Tsav Roj)
Ignition Voltage: 6-8.4V
Glow Plug Hom: E8 (los yog OS G5) Glow Plug & AET Fais Fab System
Pom zoo Propeller: 19x8; 19 x 10; 20 x 8; 20 x 10
Lub cev hnyav: 1216g
Qhov hnyav ntawm Muffler Teeb: 73g
Qhov hnyav ntawm Aluminium Standoffs Teeb: 100g
Qhov hnyav ntawm Glow Plug: 3.6g
Qhov hnyav ntawm AET (Ignition): 30g
Qhov hnyav ntawm Starter: 109g
Qhov hnyav ntawm ESC: 36g
Qhov hnyav tag nrho: 1459g (3.22 lb)
